TTGO LoRa32 868MHz ESP32

TTGO LoRa32 868MHz ESP32

The LilyGO TTGO LoRa32 is an ESP32 based microcontroller board with a built-in SX1276 LoRa chip and a 0.96 inch OLED display. The board is easily programmable through the CP2102 USB to serial convertor and can also be used as an Arduino. The board has a micro USB connector for programming and/of power supply purposes (micro USB cable is not included).

Specifications:

ESP32 chip (240Mhz dual core processor)

Flash memory: 4MB

Built-in Wi-Fi

Built-in Bluetooth

SX1276 LoRa chip

Built-in Li-ion/Li-Po battery charging circuit: TP4054 chip can charge up to 500mA

Battery connector: 2p Molex Picoblade

Battery cable is included

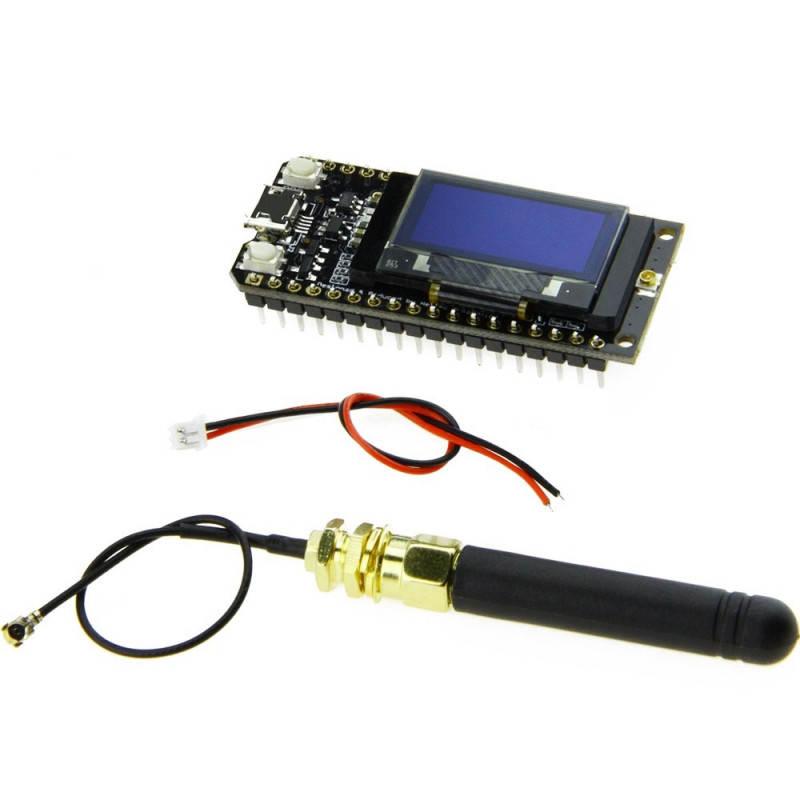

Package contents:

1x LilyGO TTGO LoRa v1.0 board

1x LoRa antenna 868MHz

1x battery cable with 2p Molex Picoblade connector

2x 18p header male
