Nokia 5110 LCD display

Nokia 5110 LCD display

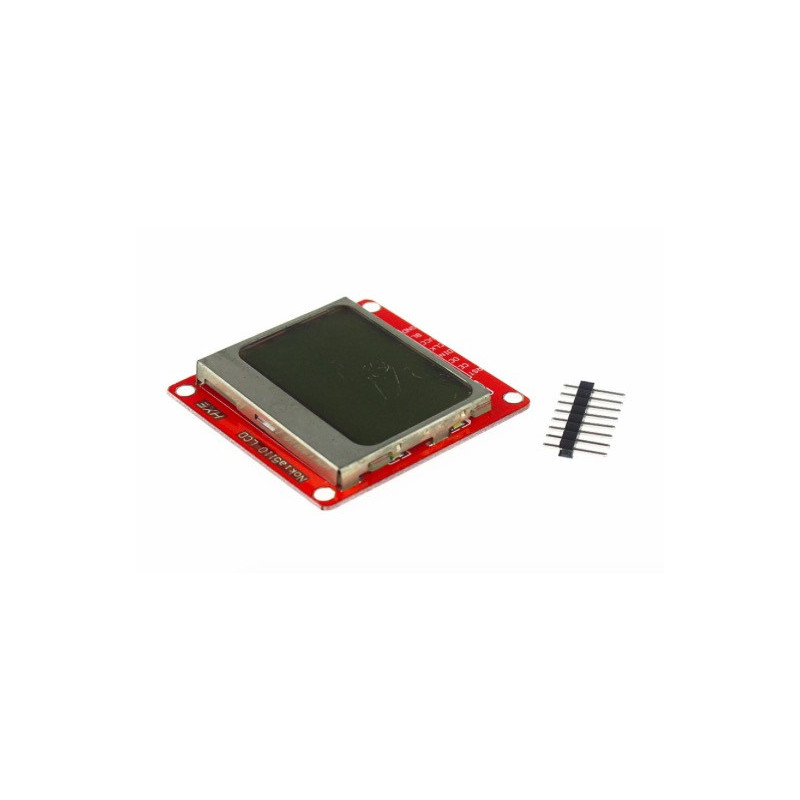

The Nokia 5110 screen is a basic graphic LCD screen for lots of applications. It was originally intended as a cell phone screen. This one is mounted on an easy to solder PCB.

It uses the PCD8544 controller, which is the same used in the Nokia 3310 LCD. The PCD8544 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 48 rows and 84 columns. All necessary functions for the display are provided in a single chip, including on-chip generation of LCD supply and bias voltages, resulting in a minimum of external components and low power consumption. The PCD8544 interfaces to microcontrollers through a serial bus interface.

  LIGHT linked with GND, the backlight to be lit.

•  Need you to compress the screen and PCB tighter, might got loose after the delivery.

•  Use a 3.3V controller, otherwise the display could be quite vague.

•  LCD5110 Module:

•  Power supply voltage: 2.7V-3.3V,5V is OK,but part of the screen becomes black when tested

•  Data interface level: 2.7-5V

•  Backlight power supply voltage: highest 3.3V

•  Module size: 43.6mm x 43.1mm(width X height)

•  Installation diameter: 2mm

•  Backlight: White

•  RST--------- reset?

•  CE------------chip selection?

•  DC-----------data/commands choice?

•  DIN-----------serial data line?

•  CLK------------serial Clock Spee

•  3.3V------------VCC?

•  LIGHT--------- backlight control terminal?

GND-----------power negative

•  LIGHT linked with GND, the backlight to be lit.

•  Need you to compress the screen and PCB tighter, might got loose after the delivery.

•  Use a 3.3V controller, otherwise the display could be quite vague.

•  LCD5110 Module:

•  Power supply voltage: 2.7V-3.3V,5V is OK,but part of the screen becomes black when tested

•  Data interface level: 2.7-5V

•  Backlight power supply voltage: highest 3.3V

•  Module size: 43.6mm x 43.1mm(width X height)

•  Installation diameter: 2mm

•  Backlight: White

•  RST--------- reset?

•  CE------------chip selection?

•  DC-----------data/commands choice?

•  DIN-----------serial data line?

•  CLK------------serial Clock Spee

•  3.3V------------VCC?

•  LIGHT--------- backlight control terminal?

GND-----------power negative
